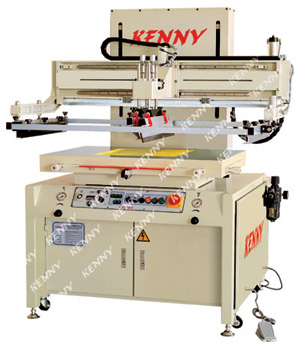

Description: This series of equipment is suitable for carbon through-hole and silver through-hole printing.
1. The machine is facilitated with the special printing table: equipped with the sub-table that can be replaced according to the printing requirement. It can also bore holes on the sub-table according the requirement.
2. The silver/carbon paste is sucked through the PCB with the integrated powerful vacuuming system on the printing table. And the power of the vacuum action can be adjusted.
3. The printing carriage is guided on the double parallel high precision Linear Motion Guide (“Bosch Rexroth”, Germany),instead of the two pillars. And the printing frame is fixed on the sub-frame with the support from the rigid side arms. Together with the function of hydraulic buffering, guarantee the highest printing repeatability.
4. The printing table is facilitated with X-Y-Z fine pitch registration adjustment with self-locking system, easy for registration. And the surface of the printing table is make from the stainless steel, avoid to be scratched and deformed. The flatness of the printing table is within±0.03mm,ensure the printed patterns to be more uniform and clear.
5. Pneumatic-driven vertical screen lifting system to prevent any unnecessary ink flow on the screen, small volume of ink can be printed, registration and clean very easily.
6. The printing stroke and sub-frame are variable adjustable and different sizes of printing frames are acceptable.
7. It is equipped with auto peel-off system, peel-off angle and speed are variable adjustable, guaranteed the printing quality.
8. The air pump(750W) apply the brand that from Taiwan, the vacuuming action is controlled by the valve and the air cylinder. And the machine is also set with the function of vacuum Ⅱ,make the registration more accurate and easier.
9. In order to improve the quality and the reliability of the machine, all of the important spare parts apply the famous brand that from Japan and Europe. Such as the air cylinder supplied by “PneuWerke” from Switzerland, the valve and air service unit supplied by “Bosch Rexroth” from Germany, the pressure regulator supplied by “NORGREN” from England ,the PLC supplied by “Panasonic” from Japan and so on.
10. The printing action is driven by the advanced digital controlled AC motor (CPG brand, 200W) that from Taiwan and the” Schneider” frequency inverter. Running on the double parallel high precision Linear Motion Guide (“Bosch Rexroth”, Germany) , together with the timing belt from Israel, ensure the smooth movement.
11. The printing carriage is driven by the air cylinder supplied by “PneuWerke”,together with the ISO standard valve supplied by “Bosch Rexroth”
PARAMETER
|
Model
|
TPM-4560C
|
TPM-6080C
|
|
Max. printing size
|
320×400mm
|
500×510mm
|
|
Max. frame size
|
750×1000mm
|
900×1200mm
|
|
Table size
|
600×800mm
|
700×1000mm
|
|
Mechanical speed
|
750p/h
|
600p/h
|
|
Stock thickness
|
0~40mm
|
0~40mm
|
|
X,Y and Z adjustment
|
+/-10mm
|
+/-10mm
|
|
Mechanical repeatability
|
±0.01mm
|
±0.01mm
|
|
Manifold air pressure
|
0.5~0.6Mpa
|
0.5~0.6 Mpa
|
|
Air consumption(approx.)
|
1.5L/P
|
1.5L/P
|
|
Electricity
|
2P 220V/50Hz
|
2P 220V/50Hz
|
|
Power
|
1kw
|
1kw
|
|
Dimension(mm)
|
1310×1000×1740
|
1520×1120×1740
|
|
Net weight(approx.)
|
500 kg
|
600 kg
|
|
