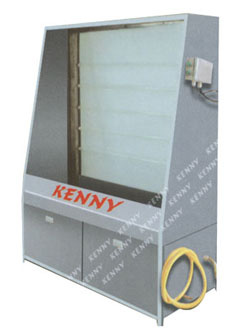

Description: The developing booth is used for washing the screen or developing the screen after exposing.
Features:
1. The booth is made with high grade stainless steel sheeting.
2. Equipped with high pressure water pump, with water proof safety on/off switch.
3. Back-lit screen with sun light lamps.
4. Safety short circuit protector (“MITSUBISHI”) is standard on the machine.
PARAMETER
|
Model
|
RE-1212
|
RE-1314
|
RE-1220
|
|
Max. frame size
|
1200×1200mm
|
1300×1400mm
|
1200×2000mm
|
|
Intake pressure（max.）
|
6Mpa
|
6Mpa
|
6Mpa
|
|
Optimum pressure
|
8Mpa
|
8Mpa
|
8Mpa
|
|
Electricity
|
2P 220v/50Hz
|
2P 220v/50Hz
|
2P 220v/50Hz
|
|
Power
|
1.3kw
|
1.3kw
|
1.3kw
|
|
Dimension(mm)
|
1460×800×1810
|
1800×810×1820
|
2260×800×18110
|
|
Net weight(approx.)
|
137kg
|
150kg
|
220kg
|
|
