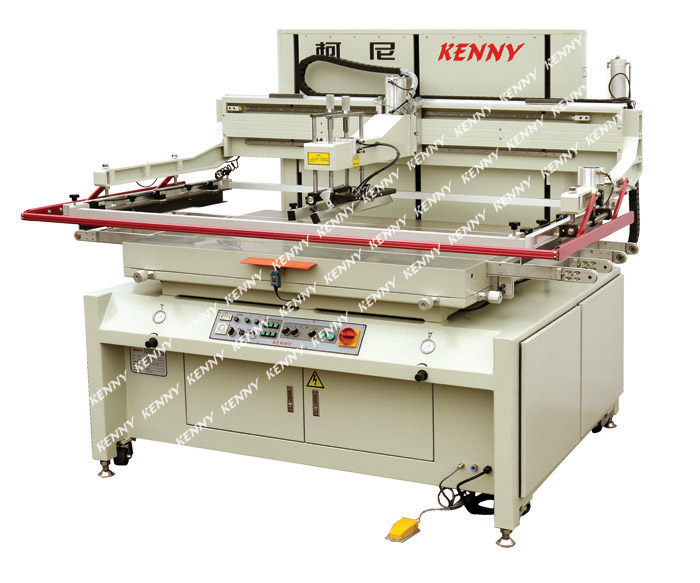

3/4-AUTOMATIC SCREEN PRINTING MACHINE WITH THE CONVEYOR BELT TPM-D/C Series
Description: This series of equipment is suitable for printing on all kinds of flat materials such as PCB, name plate, LCD display, keyboard, instrument panel, glass etc.
1.         The printing carriage is guided on the double parallel high precision Linear Motion Guide supplied by “Bosch Rexroth” from Germany, instead of the two pillars. And the printing carriage is driven by the “ABB” motor from the USA together with the “Schneider” frequency inverter from France. All of these make the machine free from any vibration, guarantee the highest printing repeatability..
2.         Motor-driven vertical screen lifting system to prevent any unnecessary ink flow on the screen, small volume of ink can be printed, registration and clean very easily.
3.         The printing table is facilitated with X-Y-Z fine pitch registration adjustment with self-locking system, easy for registration. And the surface of the printing table is made from the stainless steel, avoid to be scratched and deformed. The flatness of the printing table is within ±0.03mm,ensure the printed patterns to be more uniform and clear. Even with the function of print and ,it can thicken the thickness of the ink according to requirement.
4.         The printing stroke and sub-frame are variable adjustable and different sizes of printing frames are acceptable.
5.         It is equipped with auto peel-off system, peel-off angle and speed are variable adjustable, guaranteed the printing quality.
6.         The snap-off distance adjustment is done through the patented ball screw system with direct scale reading, and self-locking. Quick and easy with precision adjustment is the key feature of the machine.
7.         The air pump apply the brand that from Taiwan, the vacuuming action is controlled by the valve and the air cylinder. And the machine is also set with the function of vacuum ,make the registration more accurate and easier.
8.         In order to improve the quality and the reliability of the machine, all of the important spare parts apply the famous brand that from Japan and Europe. Such as the air cylinder supplied by “PneuWerke” from Switzerland, the valve and air service unit supplied by “Bosch Rexroth” from Germany, the pressure regulator supplied by “NORGREN” from England ,the PLC supplied by “Panasonic” from Japan and so on.
9.         The printing action is driven by the advanced digital controlled AC motor (CPG brand, 200W) that from Taiwan and the “Schneider” frequency inverter. Running on the double parallel high precision Linear Motion Guide supplied by “Bosch Rexroth” from Germany, together with the timing belt from Israel ensure the smooth movement.
10.      It can improve the efficiency via the auto take off system: the conveyor belt will rise up after finish the printing for connecting with the dryer in the after process.
11.      It is equipped with the protection safety device, ensured the workers’ safety operation.


PARAMETER

Model
TPM-D/C4560
TPM-D/C6080
TPM-D/C6010
TPM-D/C8012
Max. printing size
450×600mm
600×800mm
600×1000mm
800×1200mm
Max. frame size
750×1000mm
900×1200mm
900×1400mm
1100×1650mm
Table size
600×800mm
700×1000mm
700×1200mm
900×1400mm
Mechanical speed
1300p/h
1200 p/h
1100 p/h
950 p/h
Stock thickness
0~30mm
0~30mm
0~30mm
0~30mm
X,Y and Z adjustment
+/-10mm
+/-10mm
+/-10mm
+/-10mm
Mechanical repeatability
±0.01mm
±0.01mm
±0.01mm
±0.01mm
Manifold air pressure
0.5~0.6Mpa
0.5~0.6 Mpa
0.5~0.6 Mpa
0.5~0.6 Mpa
Air consumption
(approx.)
0.12L/P
0.12L/P
0.12L/P
0.15L/P
Electricity
3P 380V/50Hz
3P 380V/50Hz
3P 380V/50Hz
3P 380V/50Hz
Power
5kw
5kw
5kw
6kw
Dimension(mm)
1450×1100×1850
1650×1200×1850
1850×1200×1850
2050×1400×1900
Net weight(approx.)
800 kg
900 kg
1000 kg
1350 kg
