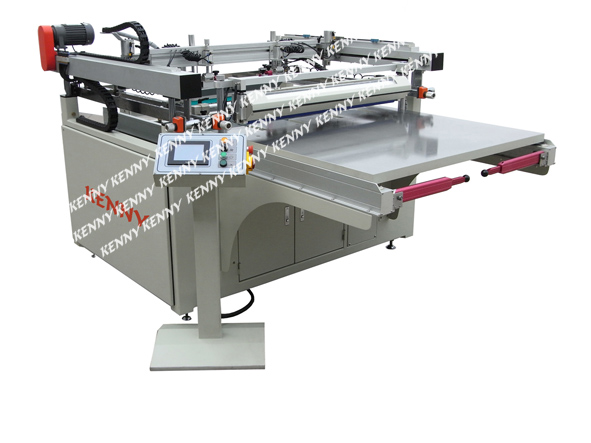

3/4 AUTOMATIC SLIDING TABLE SCREEN PRINTING MACHINETFS Series
Description: This series of equipment is suitable for printing membrane switch, flexible circuits, label , graphic drawings , name plate and so on.
 FEATURES:
1.         It is standardly equipped with the advanced touch screen control panel, E-Z TOUCH TM, 20 sets of programmes can be pre-programmed .It is easily retrieved from the menu for any repeated job and any amendment of parameters can be done within a short time .And the “Panasonic” (Japan) PLC monitors the machine operation. Together with the advanced touch screen control panel display the situation of the machine during the printing cycle. It is so easy to operate..
2.         The printing table is reinforced with honeycomb material, and heavy gauge stainless steel table top, avoid to be scratched and deformed. Together with the adjustable vacuuming system and the function of vacuum in order to reach the highest repeatability.
3.         The printing head and the printing table are running on the high precision Linear Motion Guide, supplied by Bosch Rexroth from Germany, The printing head is driven by AC motor with digital speed control. And the movement of the printing table is controlled by the frequency inverter, supplied by Panasonic from Japan. Both of these ensure smooth movement to reach the highest repeatability
4.         Front loading printing frame, X/Y/Z micrometric adjustment with read-out. Pneumatic frame lock and the printing frame is always maintained in horizontal position ,vertical motion. This prevent any unnecessary ink flow on the screen, small volume of ink can be printed, registration and clean very easily.
5.         The printing stroke and sub-frame are variable adjustable and different sizes of printing frames are acceptable.
6.         Fully synchronized peel-off system with variable angle adjustment are the key features of this machine. And the function of peel-off is optional.
7.         The printing table is positioned away from the printing head providing the easiness for loading and unloading of printing substrate.
8.         The sliding movement of the printing table and printing head is fully synchronized in proper sequence, the printing motion runs the short stroke while the flood coating motion runs the long stroke. High productivity is achieved. And the Drip-free Squeegee System and Bias Angle Squeegee are standard on this machine.
9.         The speed of printing and flood coating can be independently adjustable.
10.      The air pump apply the brand that from Taiwan, the vacuuming action is controlled by the valve and the air cylinder. And the vacuuming is powerful, ensures the precise registration.
11.      In order to the improve the quality and the reliability of the machine, all of the important spare part apply the famous brand that from Japan and Europe. Such as the air cylinder supplied by Pneuwerke from Switzerland, he valve and air service unit supplied by Bosch Rexroth from Germany, the pressure regulator supplied by Norgren from England ,the PLC supplied by Panasonic from Japan and so on.
12.      TFS is the 3/4-automatic version, equipped with the gripper system and discharge conveyor for connecting with the dryer in rear process.

PARAMETER:
Model
TFS-5575
TFS-6590
TFS-7610
TFS-1014
Max. printing size
550×750mm
650×900mm
760×1000mm
1000×1400mm
Max. frame size
1100×1150mm
1150×1200mm
1260×1370mm
1500×1700mm
Table size
1000×850mm
950×1200mm
1060×1320mm
1300×1650mm
Mechanical speed
600p/h
600p/h
600p/h
600p/h
Stock thickness
030mm
030mm
030mm
030mm
Gripper margin
0.15 mm
0.15 mm
0.15 mm
0.15 mm
Mechanical repeatability
±0.015mm
±0.015mm
±0.015mm
±0.015mm
Manifold air pressure
0.50.6Mpa
0.50.6Mpa
0.50.6Mpa
0.50.6Mpa
Air consumption(approx.)
0.5L/P
0.5L/P
0.5L/P
0.5L/P
Electricity
3P 380v/50Hz
3P 380v/50Hz
3P 380v/50Hz
3P 380v/50Hz
Power
3kw
3kw
3kw
3.5kw
