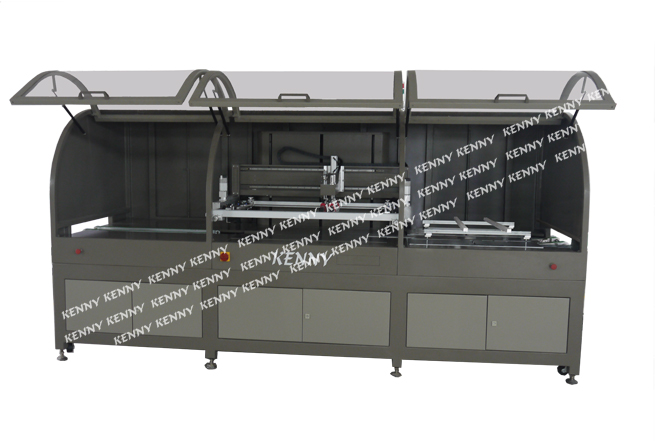

FULLY-AUTOMATIC SLIDING TABLE SCREEN PRINTING MACHINE TS-D SERIES
This series of equipment is designed for PCB printing, such as elaborate circuit printing, legend applications and solder mask printing.It can also print on glass,such as touch screen.

FEATURES:
1.        The control console is the advanced TOUCH PANEL SCREEN. It can be preset the program and parameter according to different printing requirement with storage up to 100 sets.So easy retrievable for any repeated jobs and amending for another jobs.

2.        The screen vertical lifting and the screen cleaning position up/down motion are driven by the AC frequency conversion motor.While the printing position up/down motion and peel-off action are driven by the servo motor.The peel-off action is carried out synchronously with the printing action.The snap-off distance and the peel-off angle are controlled by the numerical value.And the machine is also equipped with the function of pneumatic frame lock and micro-adjustment of the screen balance.

3.        The servo motor drives the printing action.The printing stroke and speed can be controlled via the numerical value.

4.        The printing head is driven by the servo motor.And it runs on the double parallel high precision Linear Motion Guide. All of these make the printing action more smooth.
         The pressure on two sides of the squeegee and flood coater are balance by itself, doesn’t need to be adjusted by hand.
         The printing head with lifting system makes it convenient to clean the screen frame and replace the squeegee & flood coater . The printing head can get an angle according to the job requirement.
5.        When the printing substrate is sent to the registration table, the location guides will carry out the registration. Ensuring the printing precision.

6.        In order to reduce the time for delivery, the machine is set with the sliding table to send the pre-printed parts and printed parts at the same time. In this way, the machine gets the greater efficiency.
      The sliding table moving action is driven by the servo motor, ensuring the fast and precise movement.

7.        The printed parts are sent out by the sliding table together with the discharge conveyor, greatly enhancing the efficiency.


   PAPAMETER:
Model
TS-D6080
TS-D7010
TS-D8012
Max.printing size
600x800mm
700x1000mm
800x1200mm
Max.frame size
900x1240mm
1000x1460mm
1100x1660mm
Table size
700x1200mm
860x1400mm
960x1600mm
Feeding height
950mm
950mm
950mm
Discharge height
950mm
950mm
950mm
Mechanical speed
500P/h
480P/h
460P/h
Substrate thickness
2-10mm
2-10mm
2-10mm
Mechanical repeatability
±0.015mm
±0.015mm
±0.015mm
Manifold air pressure
0.5-0.6MPa
0.5-0.6MPa
0.5-0.6MPa
Air consumption
1L/P
1L/P
1L/P
Power supply
220V/7KW/50HZ
220V/7KW/50HZ
220V/7KW/50HZ
Dimension(mm)
3920×1430×1970
4120×1630×1970
4320×1830×1970
Net weight(approx.)
1000kg
1200kg
1400kg
